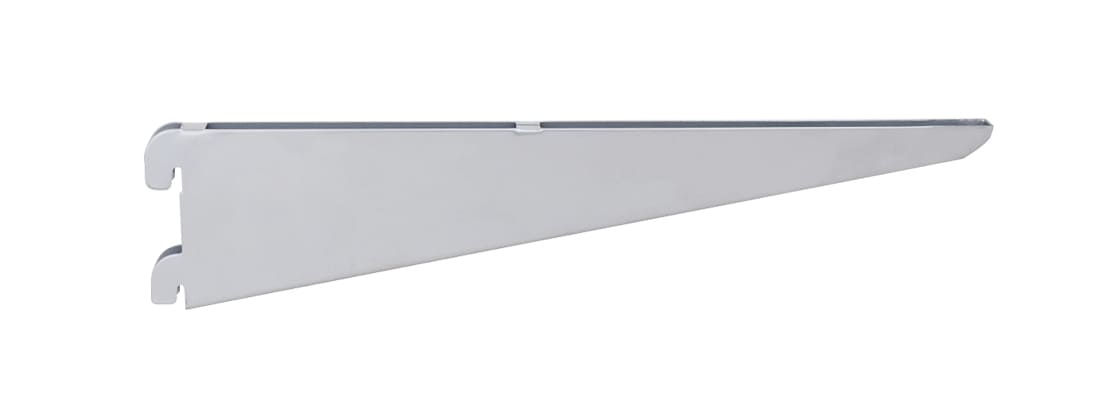

UB-02 Double Slot Shelf Bracket

Ub-02 Double Slot Shelf Bracket

Ub-02 Double Slot Shelf Bracket

Ub-02 Double Slot Shelf Bracket

分类 Bracket Series

其他信息

thick(SPCC)	1.0-1.2mm
norm	17#-59#
surface treatment	Spraying on demand

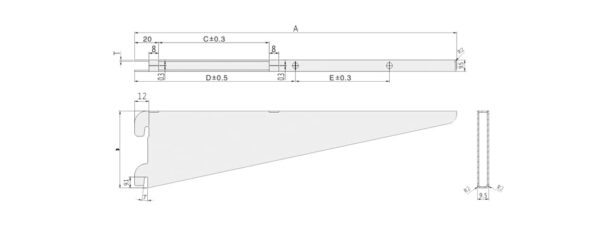

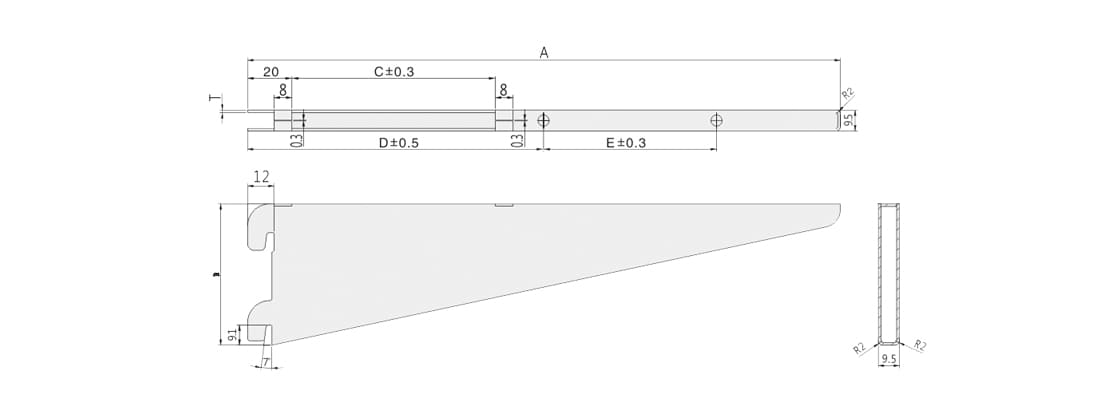

model number	norm	A	B	C
17#	168	168	64	75
22#	230	230	64	133
27#	280	280	95	133
37#	380	380	64	158
47#	480	480	64	217
59#	600	600	64	360

model number	D	E	T	Load capacity
17#	75	55	1.0	50
22#	96	90	1.0	50
27#	156	80	1.0	30
37#	211	125	1.0	20
47#	270	160	1.0	10
59#	280	170	1.2	20
