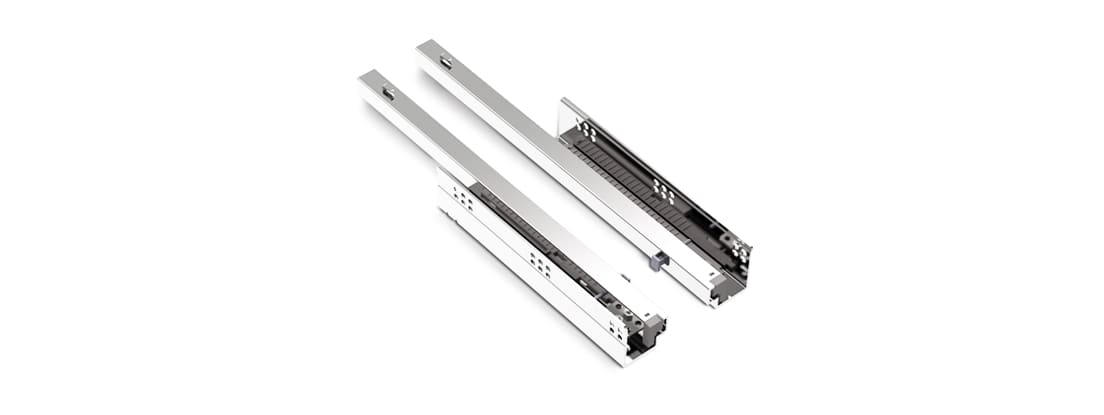

TY303D 3-section Damping Concealed Slide Rail
Additional information
| Load capacity | 30kg |
|---|---|
| Length | 250-600MM |
| Height adjustment | ±2MM |
| Finiching | Zinc plating |
| Slide panel thickness | 16mm |
| Material thickness | Inner rail 1.0*Middle rail 1.4*Outer rail 1.8 |
| Nss | 48H |
Features: three hidden buffer rail, full pull-out three-section structure, the use of shaped center rail, so that the movement process is more smooth and fluid; with anti-subsidence module, pull out the sinking amplitude control in the level; with the mature and high-quality cushioning linkage device, buffer effect responds quickly to the bottom of the self-absorbing locking; installation and dismantling is extremely easy to open the effect of the extremely lightweight.
Other features and special holes of the same model
TY303B Cushioning / P055 TY303B holes
TY303D Cushioning / P055 TY303D holes
TY303F Bounce back / P056 TY303F holes
TY303W Cushioning / P056 TY303W hole
