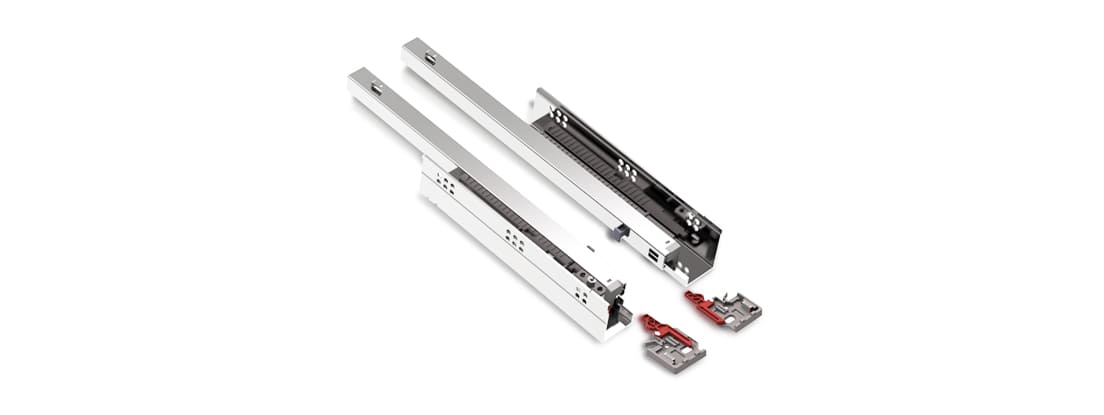

TY301D 3-section Snap Damping Concealed Slides
Additional information
| Load capacity | 30kg |
|---|---|
| Length | 250-600MM |
| Height adjustment | ±2MM |
| Finiching | Zinc plating |
| Slide panel thickness | 16mm |
| Material thickness | Inner rail 1.0*Middle rail 1.4*Outer rail 1.8 |
| Nss | 48H |
Features: three sections of hidden buffer slides, full pull out three sections of the structure, the use of shaped center rail, so that the movement process is more smooth and fluid; with the mature and high-quality buffer linkage device, the buffer effect of the rapid response to the bottom of the bottom of the self-absorption locking; installation and disassembly is extremely easy to open the effect of very light and smooth.
Other functions and special holes of the same model
TY301D Cushioning / P058 TY301D holes
TY301F Bounce back / P057 TY301F holes
