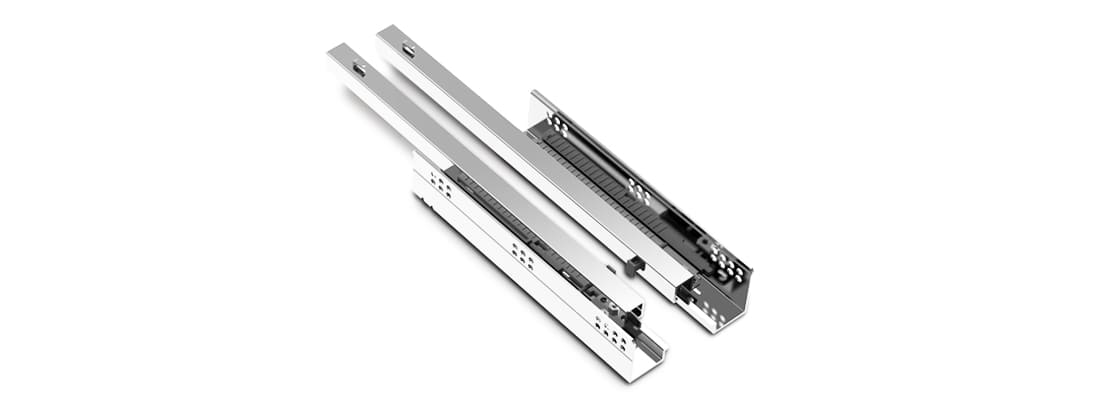

TY203D 2-section bottom bracket hidden sliding rail
Additional information
| Load capacity | 25kg |
|---|---|
| Length | 250-550mm |
| Height adjustment | ±2MM |
| Finiching | Zinc plating |
| Slide panel thickness | 16MM、18MM |
| Material thickness | Moving rail 1.4MM, Fixed rail 1.4MM |
| Nss | 48H |
Features: two sections of hidden cushion slide, mature high-quality cushion linkage device cushioning effect of rapid response, installation and disassembly is extremely convenient to open the effect of extremely light.
Other functions and special holes of the same model
TY203 cushioning / P051 TY203 holes
TY203A cushioning / P052 TY203A holes
TY203B Cushioning / P052 TY203B holes
TY203D Cushioning / P053 TY203D holes
TY203F Bounce back / P053 TY203F hole
TY203W Cushioning / P054 TY203W hole
