Installing drawer slides is often the most challenging part of a project with drawers, and now we’re going to show you just how easy it is to install drawer slides!
I. Common types of slides
| Type | Features | Typical Use |
|---|---|---|
| Roller Slides | Low cost, basic structure, light duty | Light-duty furniture |
| Ball Bearing Slides | Smooth operation, strong load capacity | Cabinets, industrial drawers, toolboxes |
| Undermount (Concealed) Slides | Hidden installation, soft-close | High-end furniture, kitchen systems |
Note: This guide uses hidden slides as an example for detailed explanation, other types of references are along the same lines.
2. Tools You’ll Need
Prepare the following tools before installation:
- Electric drill or screwdriver
- Screws (usually included with slides)
- Measuring tape
- Level
- Pencil or marker
- Wood clamps (optional for stability)
- Drawer and cabinet frame components
Step 3: Install the drawer portion of the slide (removable)
- Measure the length of the drawer, if the length of the slide is 400mm, the length of the drawer will be reduced by 10mm, which is 390mm.

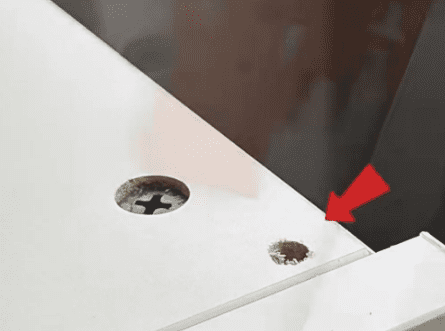

- Make a mark on the drawer position, and then open the holes
- Check: whether the holes are deep enough (Drill bit: 6mm)
(Drill depth: 12 mm)
Step 2: Install the drawer left and right handles and hit the screws to fix it.

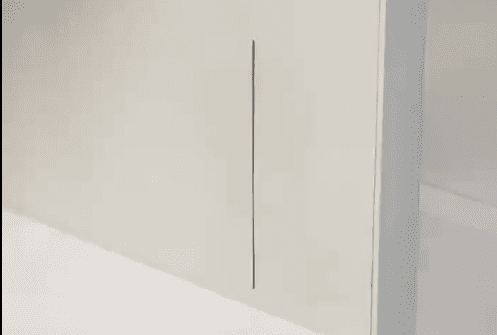

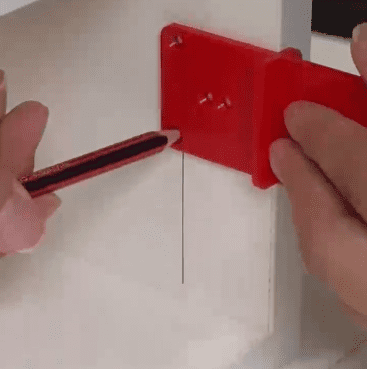

Step 3: Draw a mark installation position hole distance 37mm

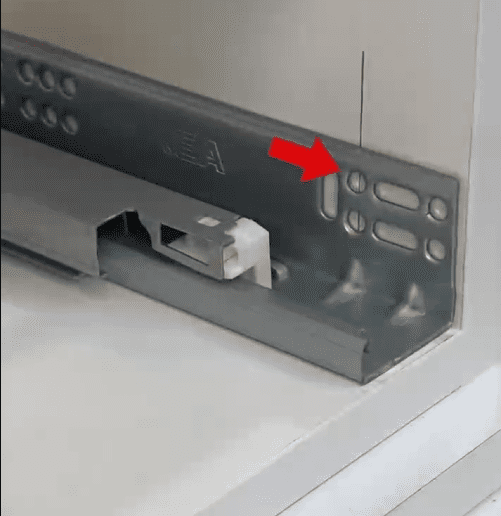

Installation:Hidden slide rail aligned with the fourth hole

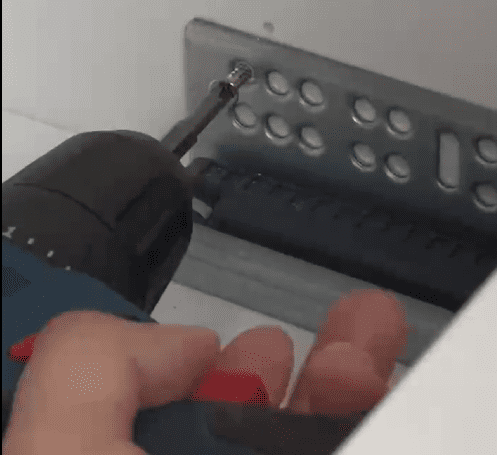

Final screw fixing, inside the hit the first hole position
Pull out the slides to install the drawer and hear a click for successful installation
3.Frequently Asked Questions (FAQ)
Q1: What is the difference between three-section slides and two-section slides?
A: Three-section slides can pull out the drawer completely, which is more suitable for application scenarios that require full spread opening. Two section slides are less costly but cannot be fully withdrawn.
Q2: What should I do if the drawer pops out after pushing it in?
A：May be the installation angle is not right, it is recommended to re-check the level or replace the slides with cushion closure function.
Q3：How to deal with the loud sound of slide pushing and pulling?
A：You can use grease to lubricate the sliding bead track in the right amount, or you can consider replacing the silent slide model.
